THE LEADER OF CHINA'S ION
RADIOTHERAPY IN THE NEW ERA
Watch the product videos

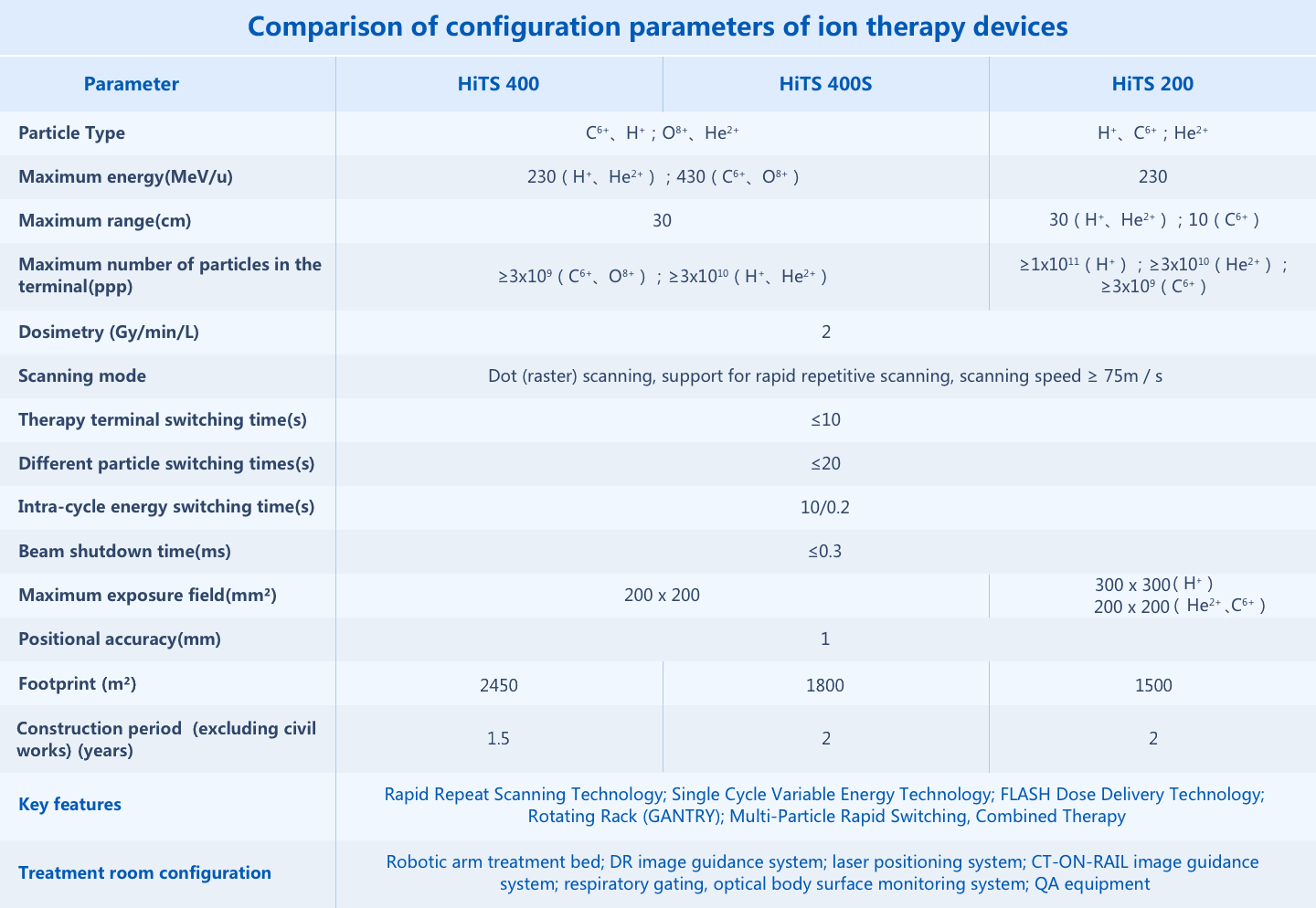

Products overview

HiTS 400

  • Carbon ion/oxygen ion, energy up to 430MeV/u
  • Proton/helium ion, energy up to 230MeV/u
  • Linac + synchrotron
  • 70m X 35m X 25m

HiTS 400S--National Key R&D Program Project

  • Carbon ion/oxygen ion, energy up to 430MeV/u
  • Proton/helium ion, energy up to 230MeV/u
  • Linac + superconducting synchrotron
  • 60m X 30m X 15m

HiTS 200

  • Proton/helium ion/carbon ion, energy up to 230MeV/u
  • Linac + synchrotron
  • 70m X 30m X 15m
Unique Advantages of Heavy Ion Therapy
Physical basis

The ionic energy deposited at the end of the range (Bragg peak) has little damage to healthy tissues along the way; thanks to the small divergence and high positioning accuracy of the beam spot, the Bragg peak after being adjusted can accurately fall on the tumor target, with little damage to the surrounding healthy tissues.

Biology basis

The damage caused by Bragg peak region is mainly unrepairable DNA double-strand breaks, which can effectively kill tumor cells insensitive to conventional radiation and leave no tumor nuclei.

Clinical treatment characteristics

It is suitable for the treatment of radiation-resistant tumors and refractory tumors with short course of treatment and little radiation damage to healthy tissue.

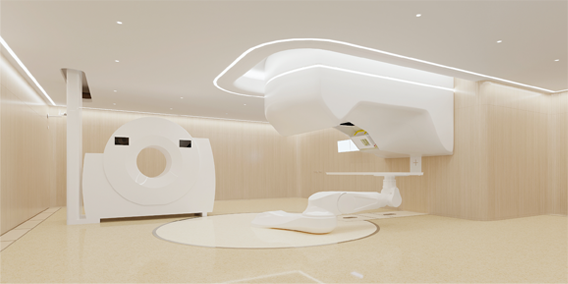

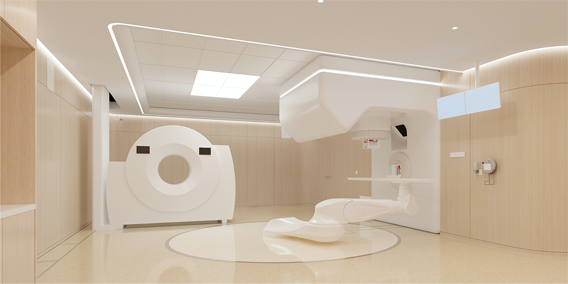

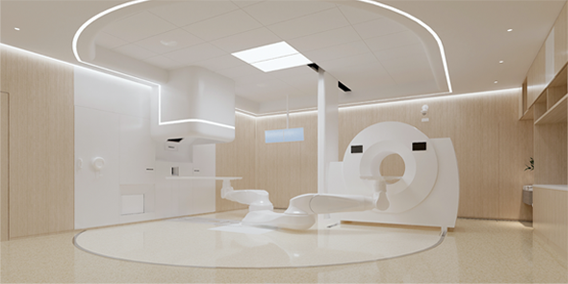

Treatment terminals at different angles
Horizontal beam therapy room
Vertical beam therapy room
Horizontal+vertical beam therapy room
45° beam therapy room
Gantry Treatment Room
Distribution of carbon ion therapy systems
Wuwei Lanzhou Putian Wuhan Hanghzou Nanjing Changchun Jinan Fuzhou
Carbon ion therapy system in Wuwei
It has been approved by the National Medical Products Administration for marketing and was officially put into operation on March 26, 2020.
Carbon ion therapy system in Lanzhou
It has been approved by the National Medical Products Administration for marketing.
Carbon ion therapy system in Putian
On September 4, 2019, the company officially signed a business contract with Fujian Zhongke Nuclear Medical Technology Co., Ltd.
Carbon ion therapy system in Wuhan
On July 9, 2020, the company officially signed a business contract with Wuhan Hannan District People’s Hospital.
Carbon ion therapy system in Hangzhou
On November 10, 2020, the company officially signed a business contract with Zhejiang Cancer Hospital.
Carbon ion therapy system in Nanjing
On June 30, 2021, the company officially signed a business contract with Nanjing Zhongke Heavy Ion Medical Management Co., Ltd.
Carbon ion therapy system in Changchun
On December 21, 2021, the company undertook the commissioned production of medical heavy ion therapy system for the First Bethune Hospital of Jilin University.
Carbon ion therapy system in Jinan
On Oct. 13, 2023, won the bid for the heavy ion therapy system and supporting equipment procurement project of Shandong Cancer Hospital & Institute.
Carbon ion therapy system in Fuzhou
On Dec. 19, 2024, won the bid for the procurement project of heavy ion proton radiotherapy system for Fujian Cancer Hospital.
Carbon ion therapy system in Wuwei
Carbon ion therapy system in Lanzhou
Carbon ion therapy system in Putian
Carbon ion therapy system in Wuhan
Carbon ion therapy system in Hangzhou
Carbon ion therapy system in Nanjing
Carbon ion therapy system in Changchun
Carbon ion therapy system in Jinan
Carbon ion therapy system in Fuzhou
Honors for products
